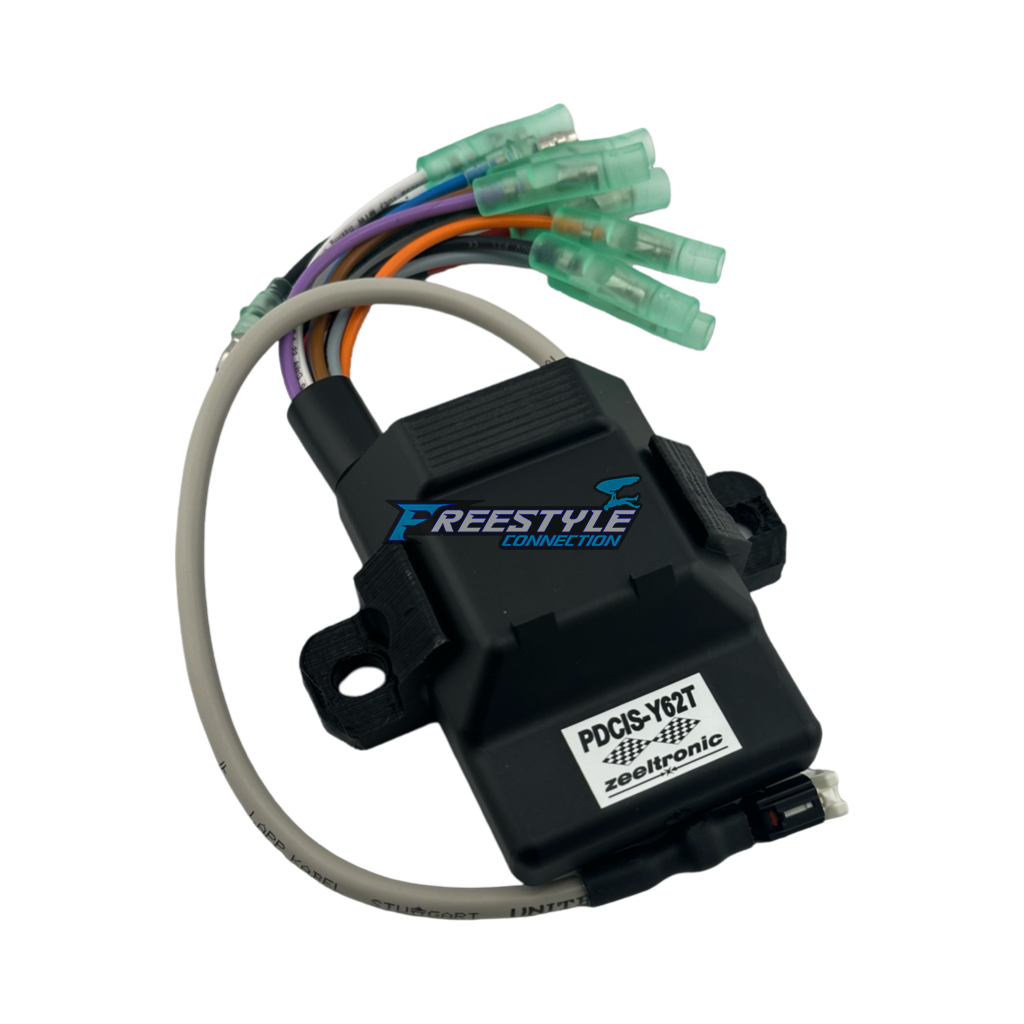

Zeeltronic Programmable Ignition - Y62T

Technical data:
- minimum revs 200RPM
- maximum revs 20000RPM
- minimum supply voltage 9 Volts
- maximum supply voltage 17 Volts
- recommended power supply from 12 to 15Volts
- automatic power down current 0,5 mAmp
- max idle current draw 0,15 Amp
- max current draw 1,5 Amp
- output energy 75mJ

Circuit is protected against reverse supply voltage (wrong connection).

Features:
- fast power-up (also starts only with condenser)
- full power starting spark energy already at 9 Volts power supply
- one isolated input for magnetic pickup
- one ignition coil output
- external switch for changing ignition map while riding
- soft rev limit (three stage rev limit)
- individual rev limit for each ignition curve
- rev counter output (1 pulse per revolution, 12 Volt square wave)
- easy and fast programming with PC
- programming while machine running - you can immediately see effects
- each curve can be set in 4 to 12 curve points
- signal delay compensation
- latching stop
- automatic power down
- fast processing for high accuracy - delays from 1us
- timing calculation for every 1 RPM change (1000, 1002, .. , 9805, 9806, ...)
